1.General specification 基本事项

1.1 Switch action 开关种类：Slide Switch

1.2 Switch rating 最大额定值：DC 12V，50mA

1.3 Operation temperature range 使用温度试验范围：-30℃~+85℃

1.4 Preservative temperature range 保存温度范围：-40℃~+85℃

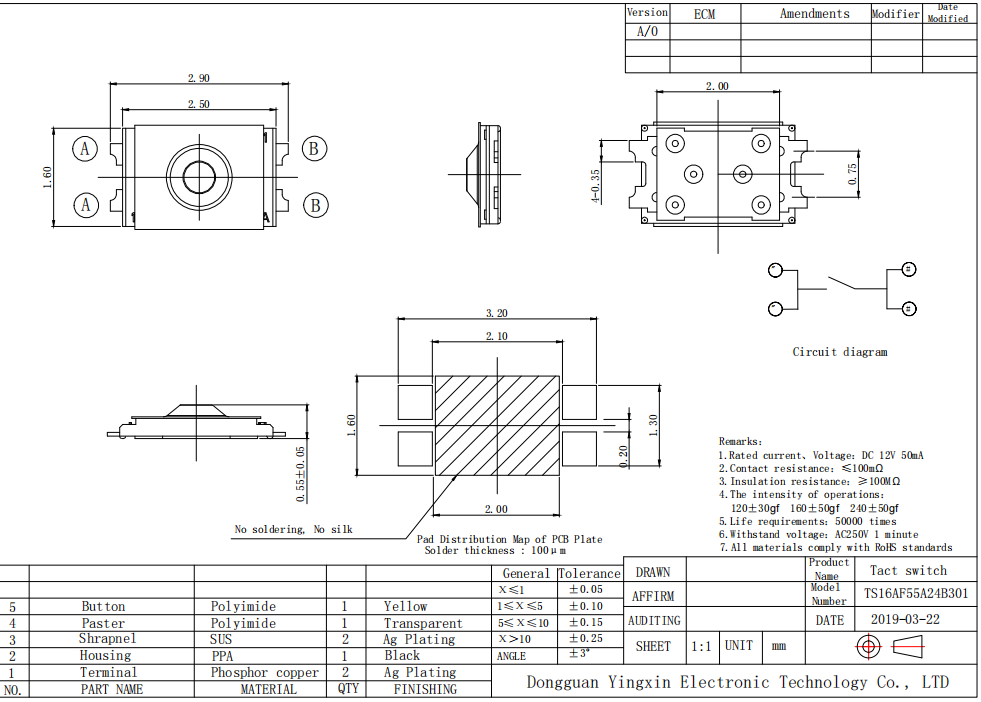

1.5 Appearance and dimensions：See outside drawing page 外形尺寸：见外形尺寸图

1.6 Standard condition：Unless otherwise specified，the test and measurements shall be carried out as follows：试验、测定状态

Ambient temperature 温度：5~35℃

Relative humidity 相对湿度：45~85%

Air pressure 气压：86~106KPa（860~1060mbar）

However，if doubt arises on the decision based on the measured

Values under the above-mentioned conditions，the following conditions be employed

但是在对判定产生疑义时，按下述状态实施：

Ambient temperature 温度：20±2℃

Relative humidity 相对湿度：65±5%

Air pressure 气压：86~106KPa（860~1060mbar）

1.6X2.6带点 规格书.pdf
